Quantela platform user manual

Save a widget as an application widget

When you are happy with the settings of a particular widget, you can save it to re-use, it allows you or other users to use the same configuration on a new widget. It is then added to the category Application Widgets in the Select widget dialog box, from which you add widgets to a dashboard.

  1. If the widget configuration dialog box is not already open, do as follows:

    • If the widget is on a Grid layout dashboard, click the Menu icon new_settings_menu.png in the top right-hand corner of the widget and select Settings.

    • If the widget is on a Fluid layout dashboard, on the floating toolbar for the widget, click the Settings icon: new_settings_menu.png.

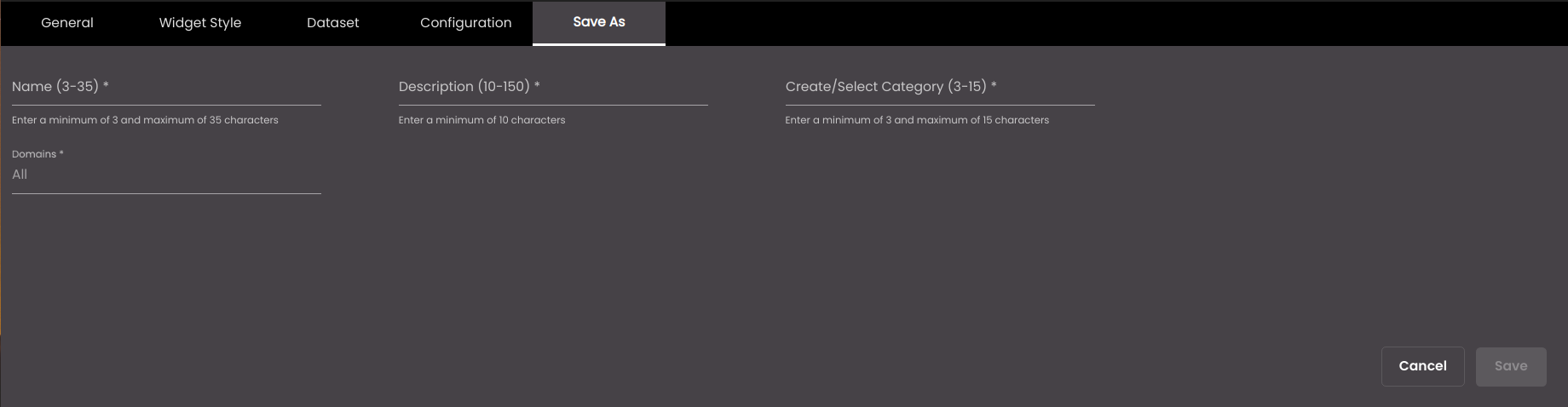

  2. In the widget configuration dialog box, click the Save As tab.

  3. Enter the following information:

    Setting

    Description

    Name

    The widget name that will be displayed in the Select widget dialog box and in the title bar of the widget.

    Note

    It must be 3-35 characters only.

    Description

    The widget description that will be displayed in the Select widget dialog box and in the title bar of the widget.

    Note

    It must be 10-150 characters only.

    Create/Select Category

    The subcategory of application widgets in which the widget will be listed in the Select widget dialog box.

    Note

    It must be 3-15 characters only.

    Domains

    The domains under which the widget will be available for adding to a dashboard. Currently, the only option is All.

  4. Click Update.

    The widget is added to the Select widget dialog box, on the Application Widgets tab, in the subcategory that you selected.
