Configure branding settings
In the top left-hand corner of the main dashboard screen, click the Admin Panel icon:
.On the Admin Panel, click Appearance

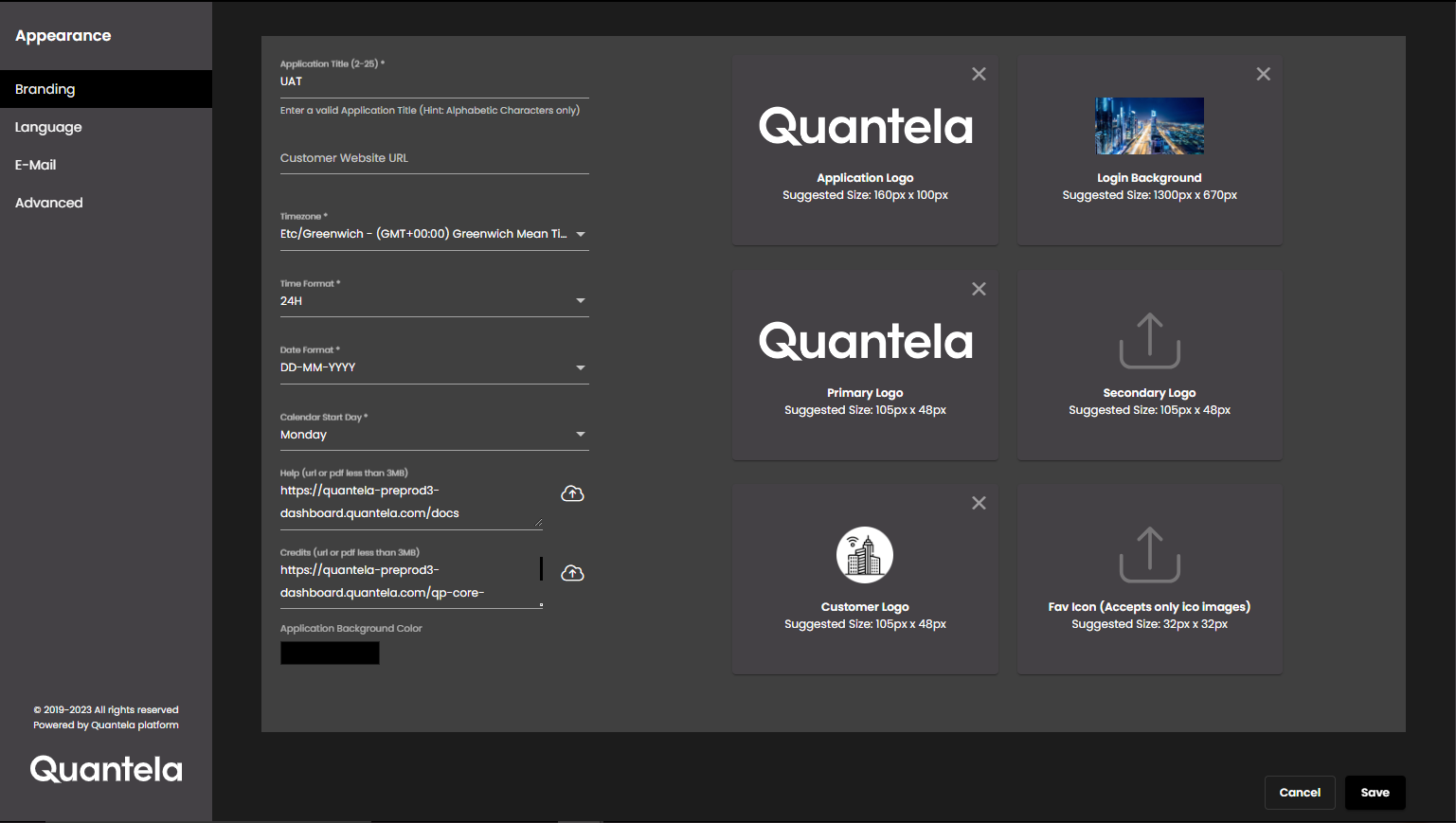

.On the Appearance screen, in the menu on the left-hand side of the screen, select Branding.
Modify the settings as required:
Setting
Description
Application Title
Title of the Quantela platform application. This is displayed at the top of the browser window and/or in the browser tab.
Note
It must be 2-25 alphabetic characters only.
Application Logo
The logo to be used for the application. This is displayed in the XLS and PDF files when a datagrid widget is exported or in the PDF file attached in the email of a dataset scheduled report.
You can upload an image to be used for the application logo by browsing for an image file locally from your system, or you can remove the existing application logo by clicking on the Remove Image icon:
.Note
For better performance, the size of the image file should not exceed 500 KB.
The recommended size of the image is 160*100 px.
Login Background
The image which is displayed on the right half of all the authentication screens.
You can upload an image to be used on the right half of the authentication screens by browsing for an image file locally from your system, or you can remove the existing login background by clicking on the Remove Image icon:
.Note
For better performance, the size of the image file should not exceed 500 KB.
The recommended size of the image is 1300*670 px.
Primary Logo
The logo shown at the top-left corner of the screen and also which is aligned left and shown above the user name in the Login screen.
You can upload an image to be used for the primary logo by browsing for an image file locally from your system, or you can remove the existing primary logo by clicking on the Remove Image icon:
.Note
For better performance, the size of the image file should not exceed 500 KB.
The recommended size of the image is 105*56 px.
Secondary Logo
A logo which is aligned right and shown above the user name in the Login screen.
You can upload an image to be used for a secondary logo by browsing for an image file locally from your system, or you can remove the existing secondary logo by clicking on the Remove Image icon:
.Note
For better performance, the size of the image file should not exceed 500 KB.
The recommended size of the image is 105*56 px.
Customer Logo
The logo of the customer which is shown at the top-left corner of the screen and to the right of the primary logo. You are navigated to the Customer Website URL on clicking it.
You can upload an image to be used for the customer logo by browsing for an image file locally from your system, or you can remove the existing customer logo by clicking on the Remove Image icon:
.Note
For better performance, the size of the image file should not exceed 500 KB.
The recommended size of the image is 105*56 px.
Fav Icon
An icon displayed next to the Application Title.
You can upload an image to be used for the favicon of the application by browsing for an image file locally from your system, or you can remove the existing fav icon by clicking on the Remove Image icon:
.Note
For better performance, the size of the image file should not exceed 500 KB.
The recommended size of the image is 32*32 px and accepts only .ico images.
Calendar Start Day
The day of the week which should be the start of the week in a calendar.
Help
The online help guide to provide assistance in using the dashboard. You can provide a URL or can upload a PDF locally from your system.
Note
If you upload a PDF, the size of it must be less than 3 MB.
If you have the help guide in different languages, you need to give the URL without the
/?lang=<HTML language code>so that it changes based on the language selected in the Language drop-down.If you have the help guide only in a specific language, you need to give the URL with the
/?lang=<HTML language code>.
Credits
You can provide a URL or can upload a PDF locally from your system containing the list of third-party and open-source software licenses used in the dashboard.
Note
If you upload a PDF, the size of it must be less than 1 MB.
Customer Website URL
The URL for the customer’s website. You are navigated to the customer website URL on clicking the Customer Logo.
Timezone
The time zone to be used for all dates and times throughout the dashboard. You can select any one of the time zones from the drop-down menu.
Time Format
The time format to be used for all times throughout the dashboard. You can select any one of the time formats from the drop-down menu.
Date Format
The date format to be used for all dates throughout the dashboard. You can select any one of the date formats from the drop-down menu.
Application Background Color
The background color which is displayed on the right half of all the authentication screens.
Click Save.
