Quantela platform user manual

Video

In order to display video from connected cameras in the Video Wall widget, you can configure the video configurations of the N3N, Kurento and QVMS encoding servers.

In the top left-hand corner of the main dashboard screen, click the Admin Panel icon: .
On the Admin Panel, click the Video icon: .
Select Bridge.

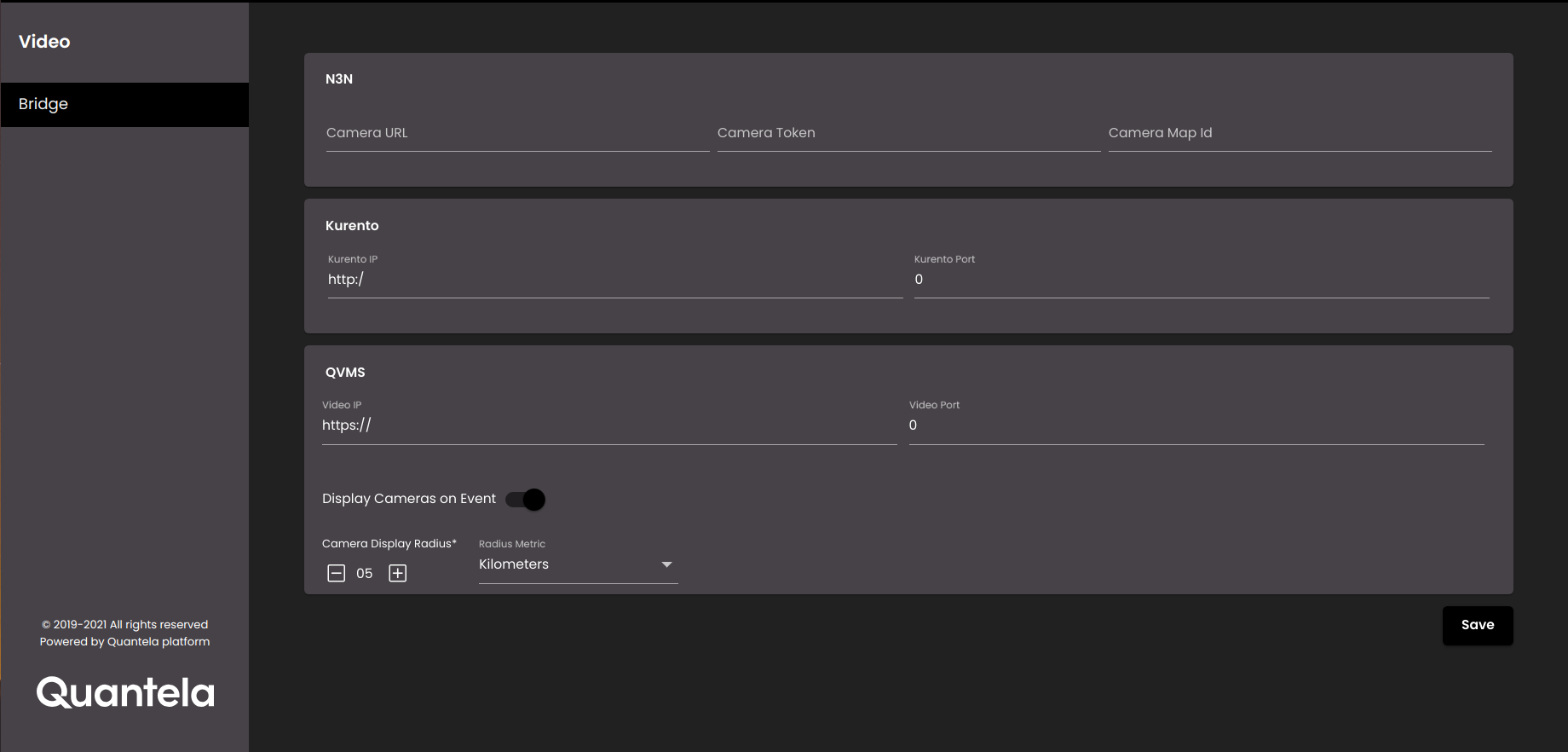

Configure the settings as required:

For QVMS, provide the following configuration details:

Setting	Description
Video IP	The IP address of the QVMS video.
Video Port	The port of the QVMS video.
Display Cameras on Event	If enabled, displays the option of Display cameras on map in Events which helps to view the live video on the cameras near the event location. The following configurations are available:Events Camera Display Radius - the radial distance around the event location to locate the nearby cameras. Note Allowed values are from 1-10. Radius Metric - the units of the Camera Display Radius which can be either Kilometers or Miles. Note The video will be shown only for the QVMS provider but not for the Kurento or N3N providers.

Click Save.
